V-12 is a professional three way speaker, with two φ100mm, 220mm magnet LF driver, six 5in MF and two φ51mm HF driver. MF and HF of the world-class composite technology to ensure that the sound synchronization, HF with cast aluminum waveguide, make the voice penetrating and stronger, LF with a front horn, effectively improve its sensitivity. Spring-style hanging greatly reduces the installation time in the project. Reserved screws on the back of box to install wheel for easy move. Flight case packaging to protect the speaker.

Application

Large indoor and outdoor venues.

SPECS

Rated Power: 1350W

Component: LF2x15"(φ100mm, 220mm magnet)/MF6xφ25mm/HF2xφ51mm

Impedance: 4Ω

Dispersion: 60x40°

Sensitivity: 103dB

Max. SPL: 133dB

Freq. Response: 45-20Hz

Cabinet:18mm Birch Plywood

DIM(WxDxH): 545x700x1200mm

MEAS(WxDxH): 1270x615x970mm

N.W: 106kg

G.W: 156kg

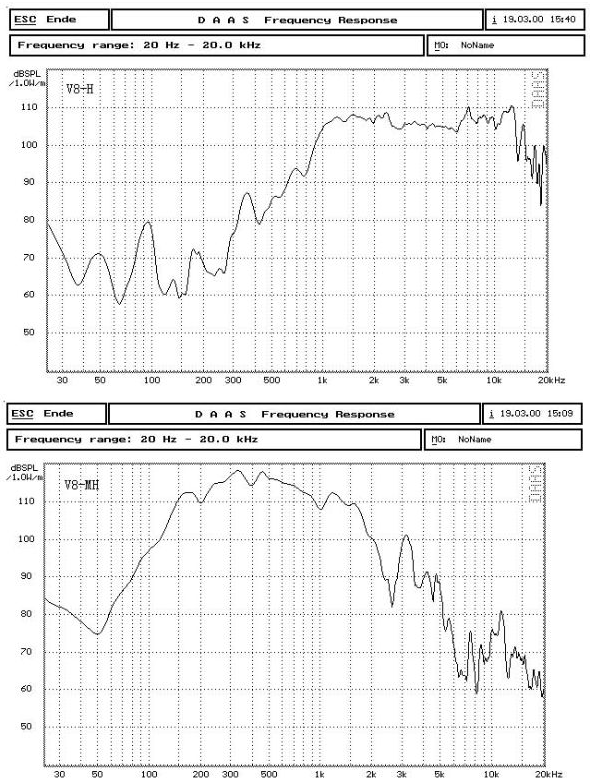

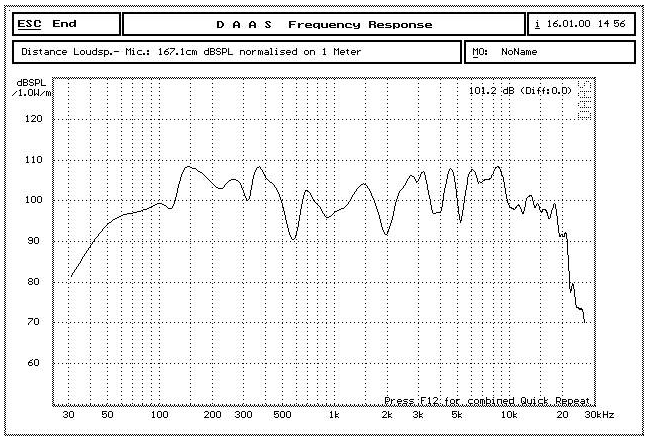

Freq. Response Curve
