Product Details
  • U215
Detail

U215 is a big power 1000W two way speaker for outdoor show with two φ100mm 15in LF driver, one φ75mm 1.5in HF driver. With the features of large dynamic, high sound pressure, far range. Cabinet use flight case design, easy to move, suitable for mid/small touring show.



SPECS:
Rated Power:1000W

Component: LF2x15" (φ100mm)/ HF1xφ75mm

 Impedance: 4Ω

Dispersion: 90×60°

Sensitivity: 102dB
Max. SPL: 132dB
Freq. Response: 45Hz-18.5KHz
Cabinet: 18mm Composite Fireproof Board

DIM(W×D×H):497x662.5x1236mm

MEAS(W×D×H): 497x662.5x1236mm
N.W: 94kg

G.W: 94kg

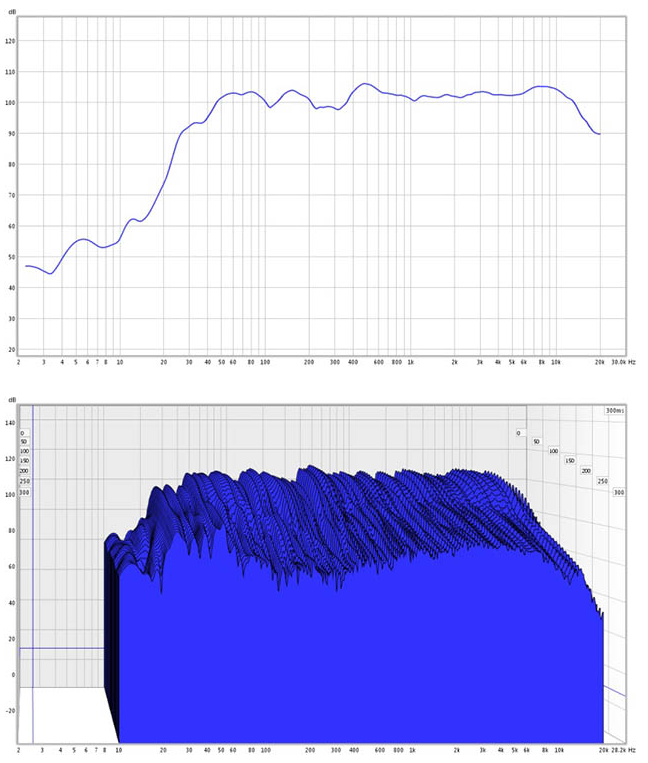

Freq. Response Curve
