U315 is a big power 1500W two way speaker for outdoor show with three φ100mm 15in LF driver, one φ75mm HF driver. With the features of large dynamic, high sound pressure, far range. Cabinet use flight case design, easy to move, suitable for mid/small touring show.

SPECS:
Rated Power:1500W

Component: LF3x15"(φ100mm)/ HF1xφ75mm

Impedance: 4Ω

Dispersion: 90×60°

Sensitivity: 105dB
Max. SPL: 142dB
Freq. Response: 47Hz-18KHz
Cabinet: 18mm Composite board

DIM(W×D×H): 497x654x1698.9mm

MEAS(W×D×H): 497x654x1698.9mm
N.W: 120kg

G.W: 120kg

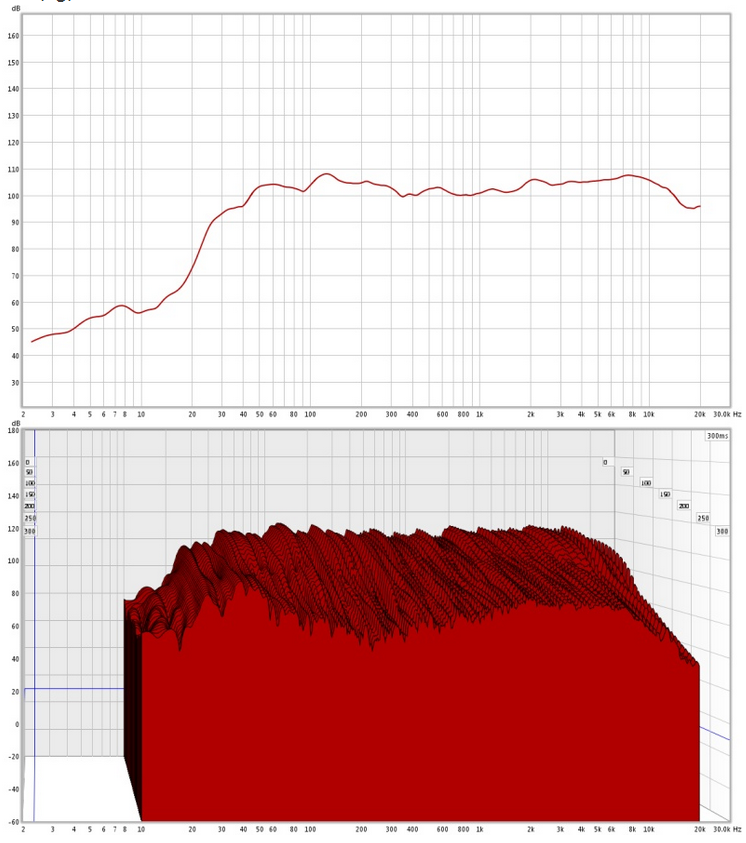

Freq. Response Curve
