R·2 is a professional three way speaker. HF and MF design to be a  conjoined horn, also to be a low frequency phase adjuster.

Features

all-weather, long range, high-power horn speaker system, waterproof, anti-ultraviolet, projection accuracy.

Construction

A double-layer resin shell of innside and outside.

Stainless steel hardware fasteners.

Double φ100mm 12in carbon woven basin LF driver. Two φ66mm MF driver, one φ51mm HF driver.

3-layer composite stainless steel mesh.

MF and HF drivers are installed in front of LF driver

Use multilayer glass fiber composite structure design

Application

Gymnasium, theme park, amusement park, track and field stadium, piazza, athletic performance field, aviation performance field, racetrack, swimming stadium, or portable sound reinforcement system.

SPECS

Rated Power: 550W

Component: LF2x12"(100mm)+ MF2xφ66mm+HF1xφ51mm

Impedance: 4Ω

Dispersion:60x40°

Sensitivity: 110dB

Max. SPL: 136dB

Freq. Response: 120-18kHz

Cabinet: Composite Polyester

DIM(WxDxH): 630x738x630mm

MEAS(WxDxH): 720x910x720mm

N.W: 54kg

G.W: 55kg

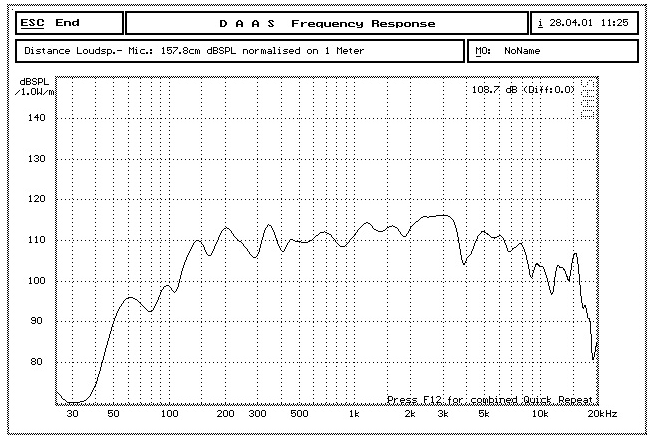

Freq. Response Curve
