V-5 is professional three way speaker with one φ75mm 12in LF driver and one φ51mm HF driver. Built in passive frequency division. MF and HF use wood cavity, greatly reducing phase interference and non-synchronization. HF driver with independent research and development of cast aluminum waveguide,  make the loss of high-frequency to a minimum. Easy to hang and install.

Application

Concert, performance.

SPCS

Rated Power: 420W

Component: LF1x12" (φ75mm)+MF2x38mm+ HF1xφ51mm

Impedance: 8Ω

Dispersion: 90x60°

Sensitivity: 101dB

Max. SPL: 128dB

Freq. Response: 55-18.5kHz

Cabinet:18mm Birch Plywood

DIM(WxDxH): 424x490x672mm

MEAS(WxDxH): 475x530x705mm

N.W: 34.5kg

G.W: 41kg

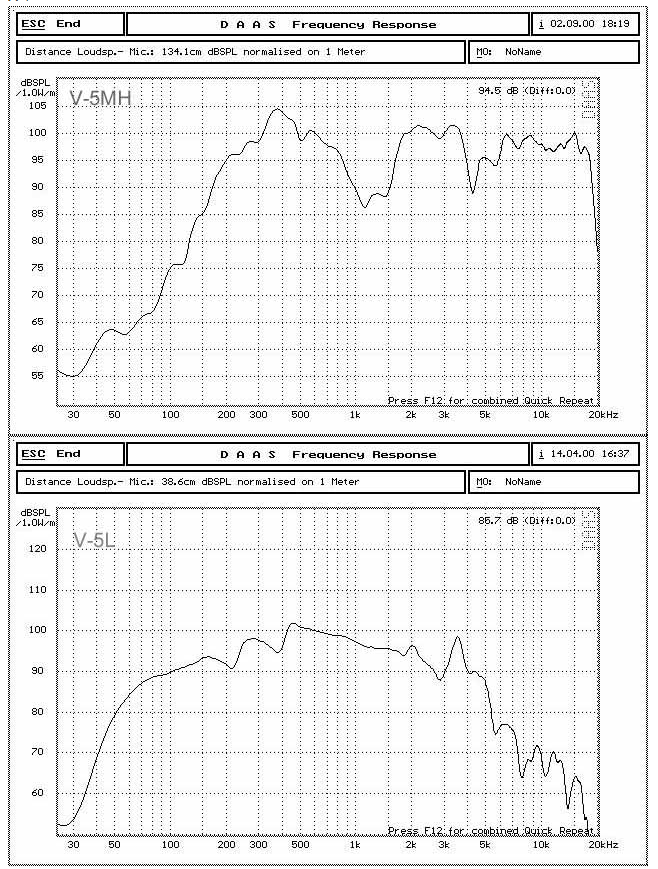

Freq. Response Curve
