V-4 is a three way professional speaker designed for entertainment venues, fast, strong sense of rhythm, especially for discos to use. Has one φ44mm titanium film tweeter compression driver, one 7in MF driver equip with horn, and one φ 75mm 12in LF driver with  the front horn composed of a two-way sound separation system. Trapezoidal shape cabinet to minimize the standing wave inside the box. Voice real and natural, LF strong power, low distortion, high sound pressure, easy to hanging. When used to cut the frequency of about 150Hz, can effectively improve the sound pressure, and more secure and durable.

Application

Nightclub, disco

SPECS

Rated Power: LF300W(RMS)/ MF.HF150W(RMS)

Component: LF1x12" (φ75mm)/ MF1x7"/ HF1xφ44mm

Impedance: 8Ω

Dispersion: 70x35°

Sensitivity: LF103dB/ MF. HF106dB

Max. SPL: LF128dB/ MF. HF128dB

Freq. Response: 120-18kHz

Cabinet: 18mm birch plywood

DIM(WxDxH): 575x750x762mm

MEAS(WxDxH): 615x820x845mm

N.W: 69.5kg

G.W: 76kg

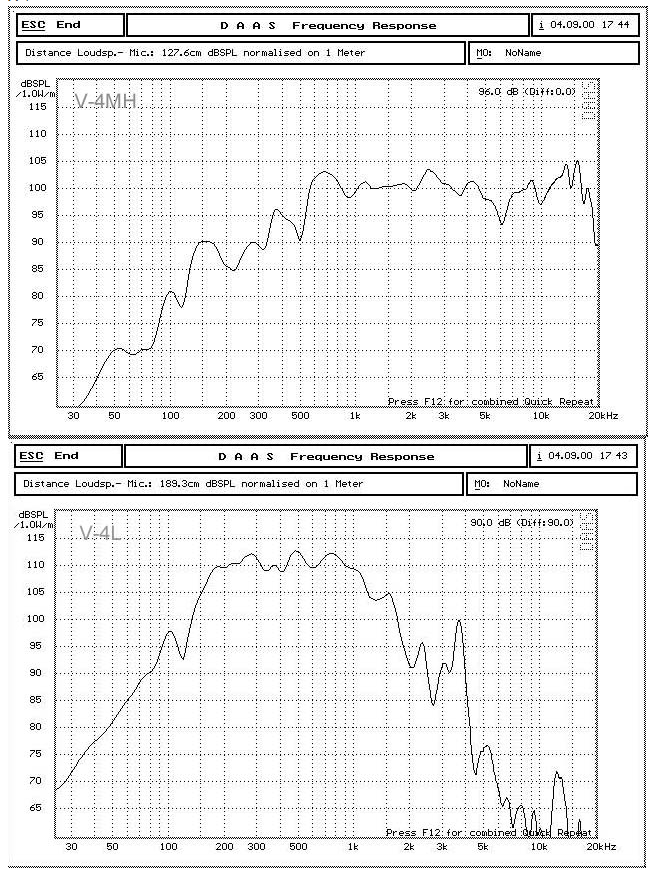

Freq.Response Curve
