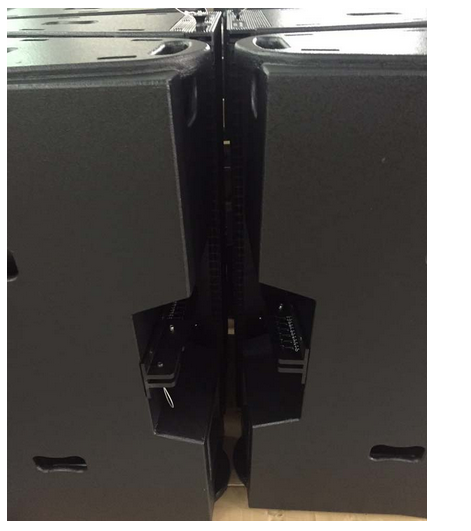

i-7000ND is a professional two way speaker with two 12in φ100mm neo LF drivers, one φ75mm neo LF drivers. Efficient HF waveguide,  vertical control angle is 0-8°, horizontal cover angle is ≥100°. Cabinet with appropriative hanging angle device for angle adjustment. Cabinet use 13 layer imported birch plywood, paint by environmental water-proof paint.

Features

Large dynamic, high fidelity, aluminium alloy hanging system with special hanging angle.

Application

Outdoor large or mid performance, indoor large concert.

SPECS

Rated Power: 1100W

Component: LF2x12"(φ100mm Neo)/ HF1xφ745mm Neo

Impedance: 4Ω

Dispersopn: 90-15°

Sensitivity: 103dB

Max. SPL: 136dB

Freq. Response: 40-18kHz

Cabinet: 18mm plywood

DIM(WxDxH): 1130x586.5x349.5mm

N.W: 43kg

G.W: 48kg

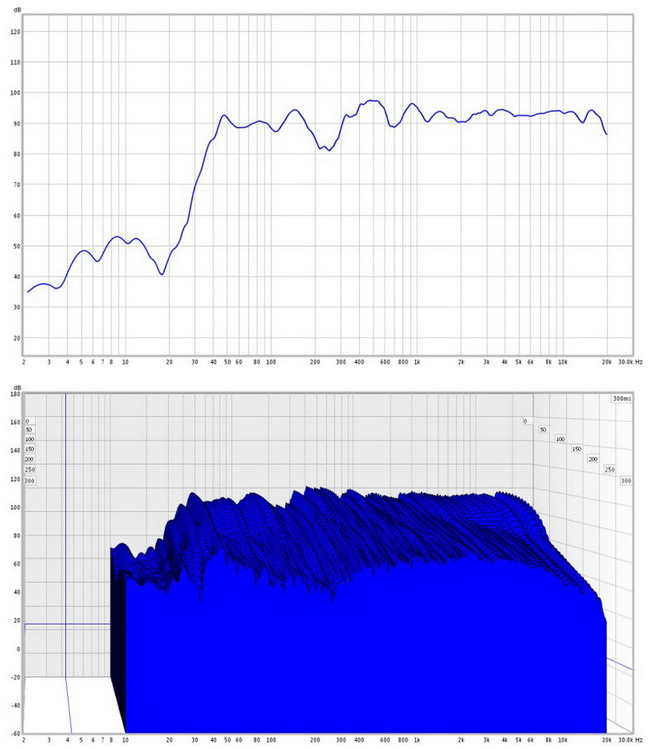

Freq. Response Curve
