Product Details
  • i-6000SUB
Detail

I-6000SUB is a line array subwoofer speaker composed of one φ100mm, 220mm magnet 18in LF driver. Cabinet rectangle shape design with a wear-resistant paint process, coupled with waterproof filter-shaped ventilation network. It could be fast conect or hanging with I-6000. Equip with wheels for easy moving. 4 pcs I-6000 with 2 pcs I-6000Bass of per channel, HF with 1 pcs QS-900m, MF with 1 pcs QS-1200m, LF with 1 pcs MP-I amplifier, work with 1 pcs DP-226 processor can meet the performance of 1,000 people occasion, the effective listening distance of 50m.


Features

Low and medium frequency with full, high-power without distortion. Sub-low frequency strong, low frequency extension plump, do not delay.



SPECS

Rated Power: 500W

Component: LF1x18"(φ100mm,220mm magnet)

Impedance: 8Ω°

Sensitivity: 100dB

Max. SPL: 130dB

Freq. Response: 35-150Hz

Cabinet: 18mm Brich plywood

DIM(WxDxH): 643x656x569mm

MEAS(WxDxH):680x710x620mm

N.W: 52kg

G.W: 55kg

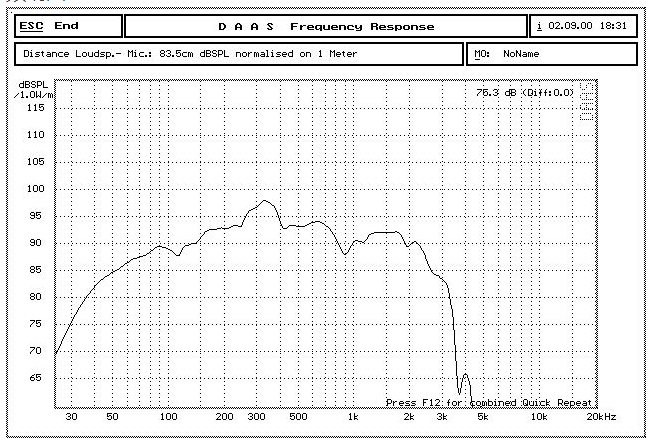

Freq. Response Curve
