i-4000POWER aluminium front panel: Stripe diffraction, Effectively control the compression ratio of air, improve the sensitivity of the intermediate frequency area, and make the sound transmission farther.

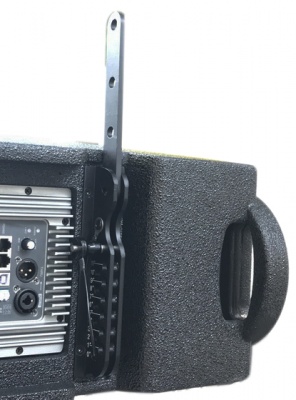

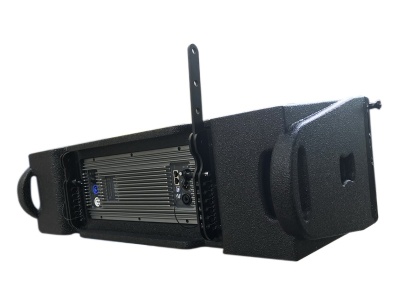

i-4000POWER is an active 2 way dual 10" line array speaker, bulid in crossover. Component used 2 PCS 10" 65mm voice coil LF driver and 2 PCS 44mm voice coil HF driver. High efficiency treble waveguide, vertical control angle 0°-8°, horizontal control angle ≥100°. Cabient bulid with special hanging equipment for slight angle adjustment. Cabinet material used 9 layer birch plywood painted with environmental painting.

Amplifier module bulid with DSP, high effeciency class D amplifying circuit, wide voltage operation. Built-in pressure limit, overload, low resistance, temperature protection. Inside carry with 4 kind of immobilized DSP program (0, 1, 2, 3) and 4 kind of editable DSP program (4, 5, 6, 7).

i-4000 also have passive model.

SPECS

Model: Active

Rated Power: 550W RMS 2200W PEAK

Component: LF2x10" (φ65mm, Neo)/ HF2xφ44mm Neo

Impedance: 4Ω+4Ω

Dispersion: 100°x7.5°

Sensitivity: 103dB

Max. SPL: 135dB

Freq. Response: 55Hz-19.5kHz

Cabinet: 15mm plywood

DIM: 810.8x504.4x304.2mm

MEAS: 620x425x880mm

N.W: 36kg

Hanging: Allow
