SPECS

Rated Power: 200W

Component: LF2x6.5" (φ50mm Neo)/ HF1xφ25mm Neo

Impedance: 4Ω

Dispersion: 110×90°

Sensitivity: 94dB

Max. SPL: 124dB

Freq. Response: 60-20KHz

Cabinet: aluminium alloy

DIM(WxDxH): 186×254×544mm

CBM: 0.05cbm

N.W: 9kg

G.W: 11kg

FEATURE:

1. 2PCS 6.5 inch neodymium LF driver (50mm voice coil), 1PCS 25mm voice coil neodymium HF driver, build in crossover passive full range speaker.

2. 6.5 inch used thermoforming cloth corrugated rim, powerful, high sound pressure.

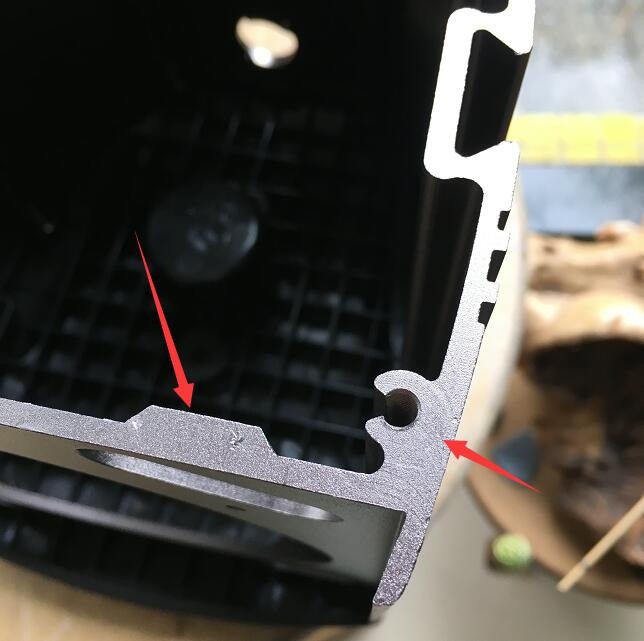

3. Cabinet used aluminium alloy, 3-8mm thick, stretch and squeeze，surface with sand point paint processing. Water-proof, ultraviolet-proof. Intensity is 4.5 times of wooden cabinet,  corrosion resistance, high performance.

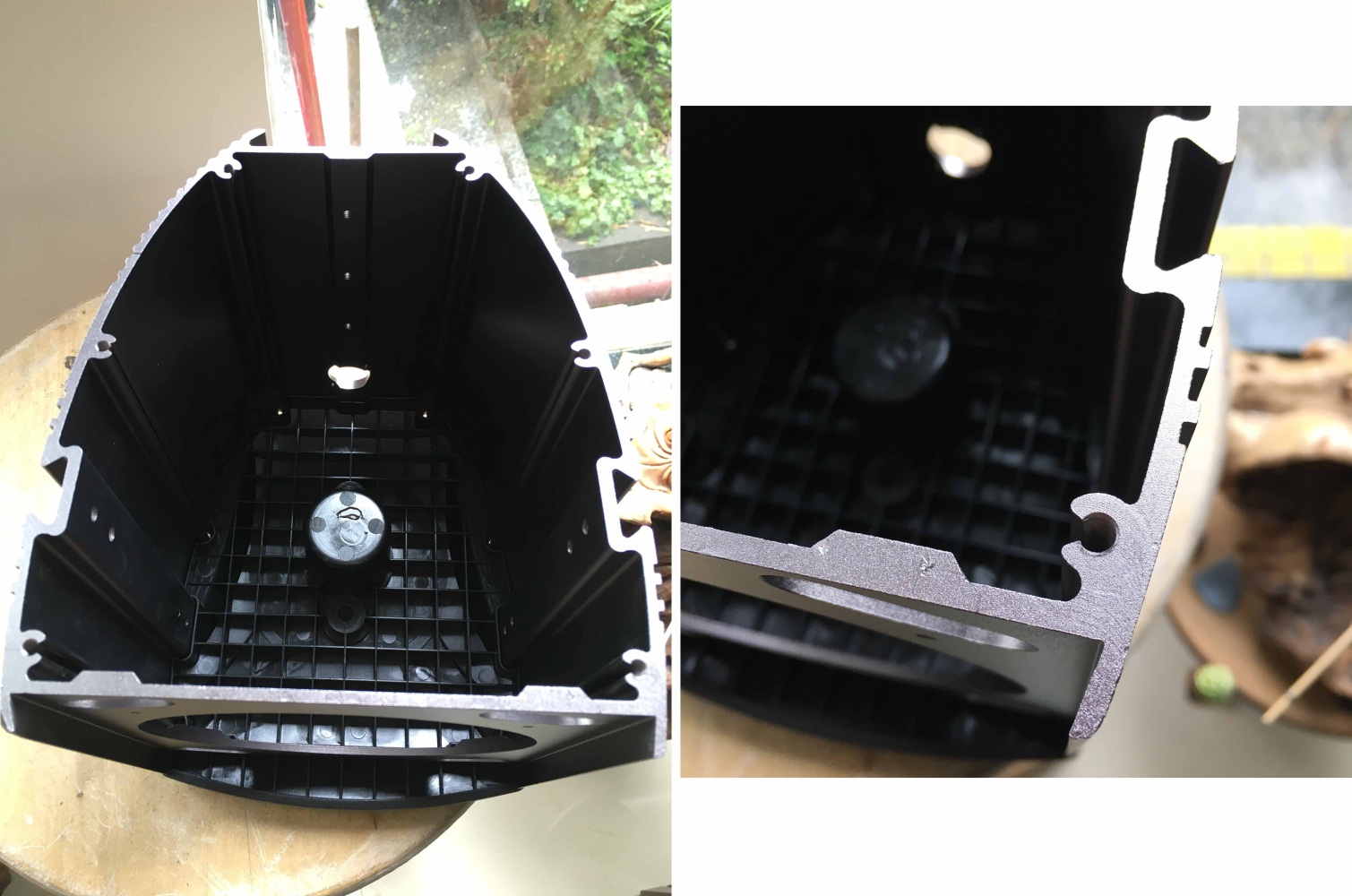

4. Inside, X,Y axial multipass aluminium alloy strengthening rib.

5. Cabinet flank by almighty long groove, extend to outside for different connect function.

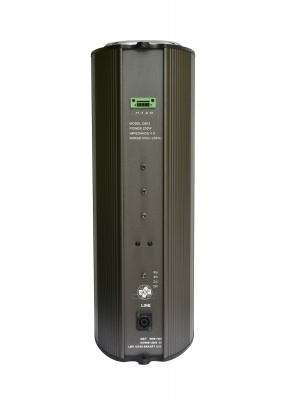

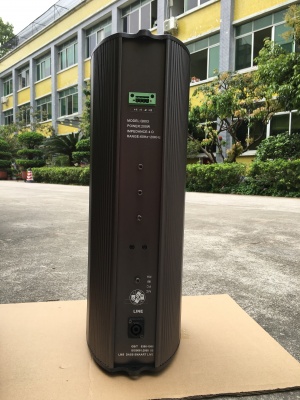

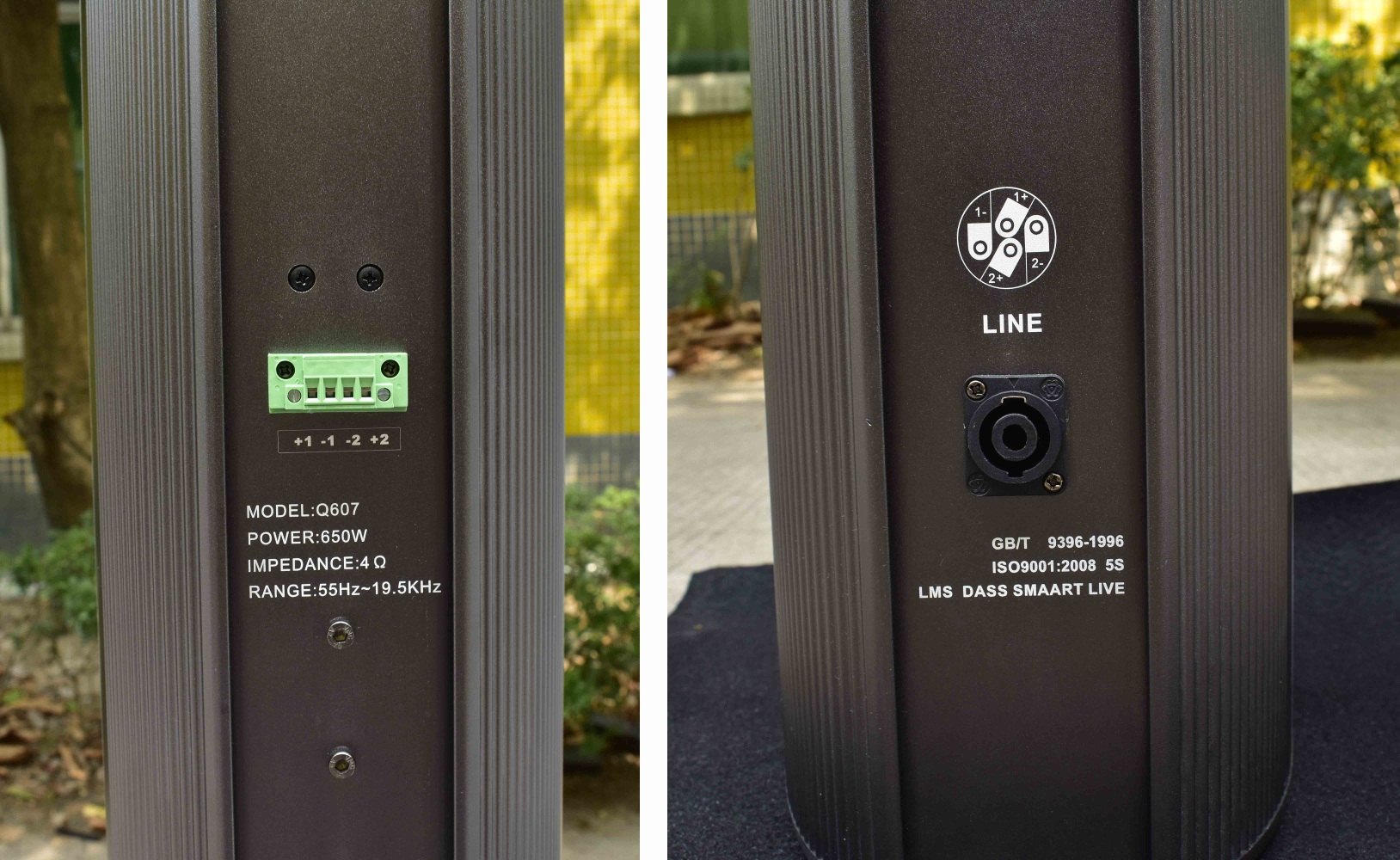

6. With two power input interface.

7. Screws was prepared for install on wall.

8. Consider to the strength of aluminium alloy shell, specially 2.5 times thicken on drivers, back frame supporting place.

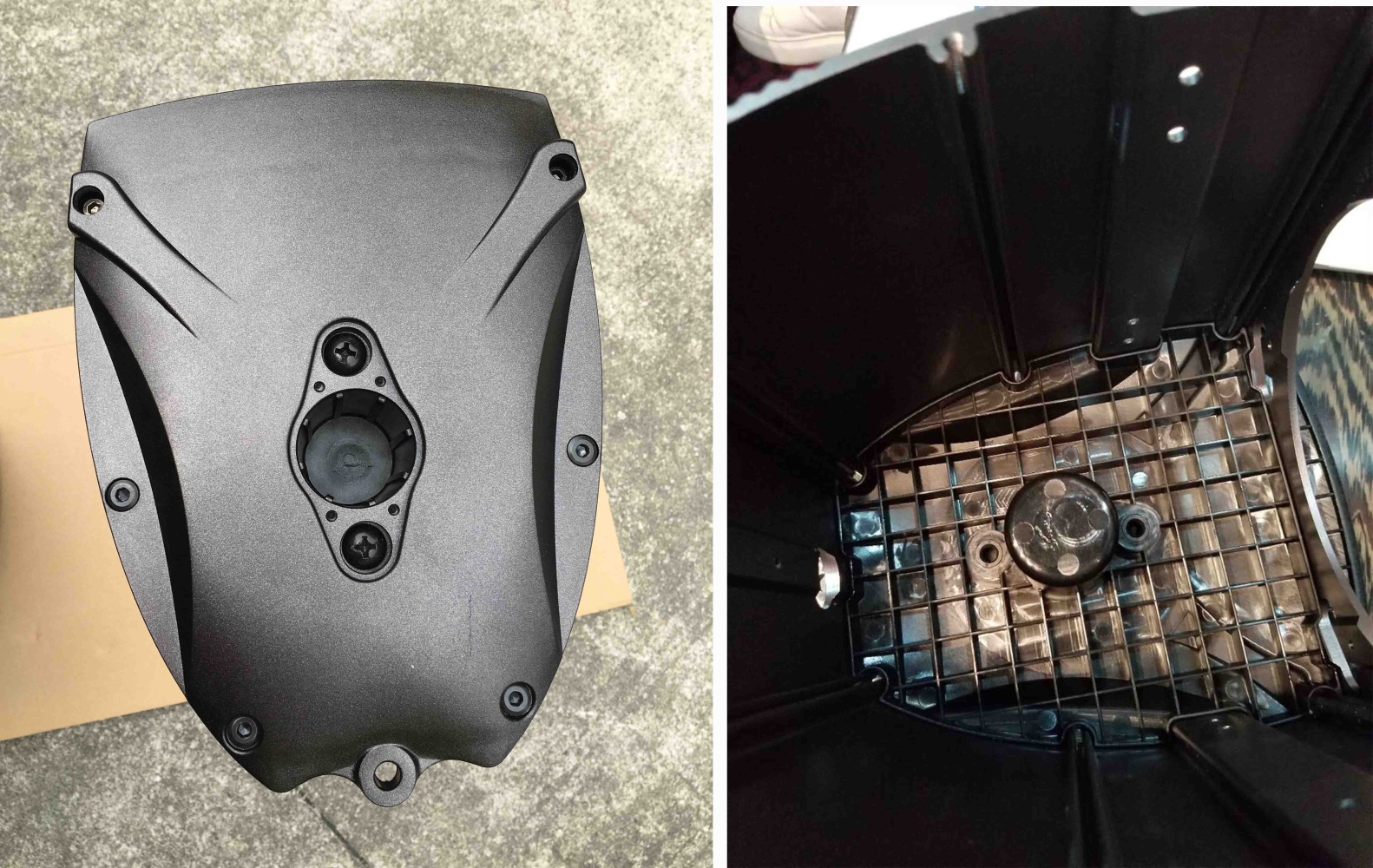

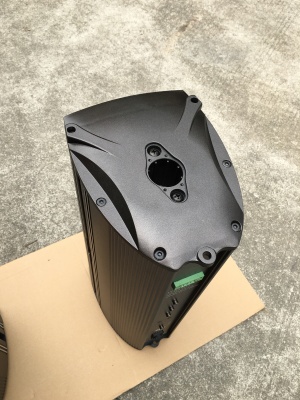

10. Top and bottom cover prepared 2PCS 8mm screw, for horizontally install as line array used. At the same time, bottom have hole available for pole.

11. Suggest match with i-4500POWER single 18 inch subwoofer, make voice more full.

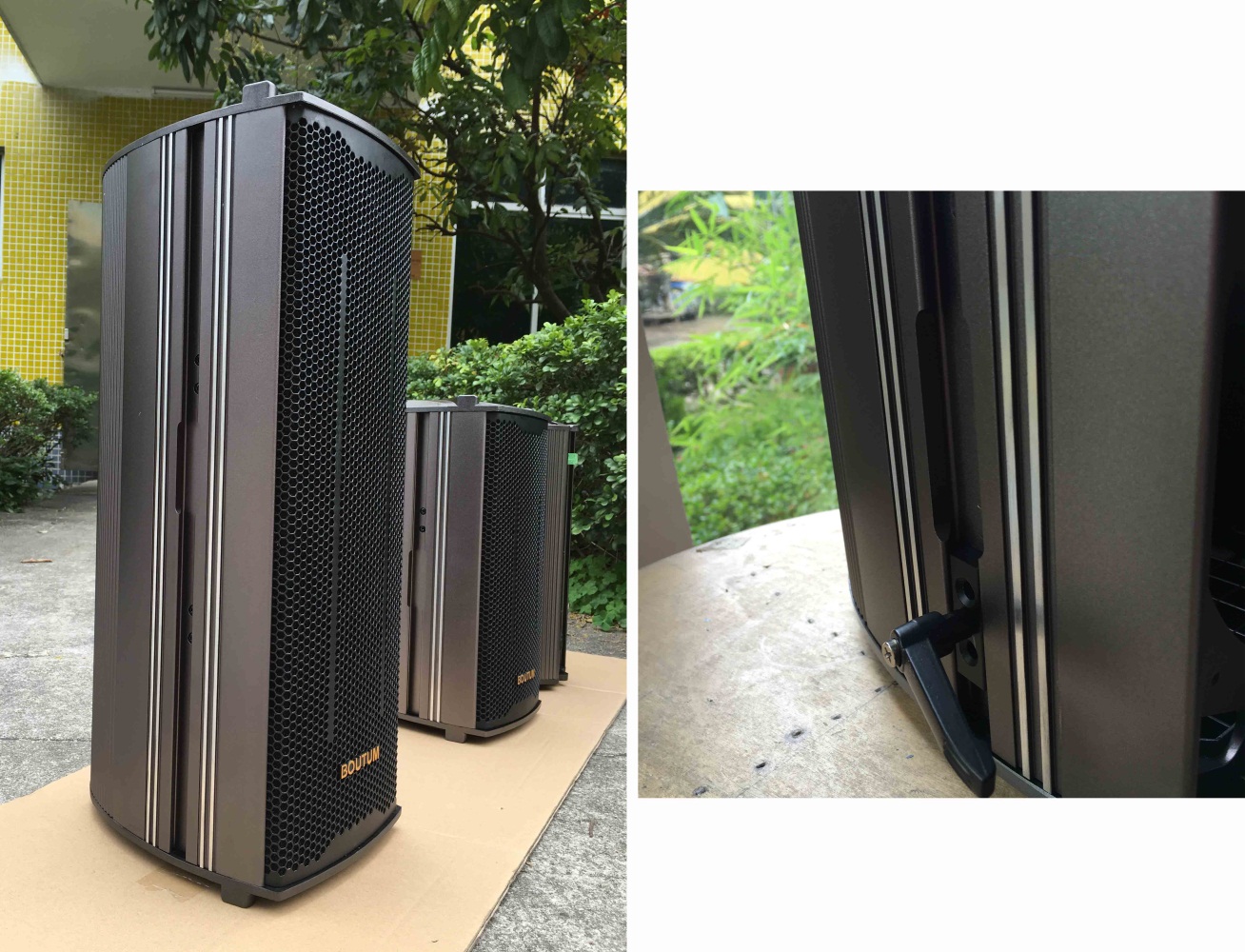

About almighty long groove:

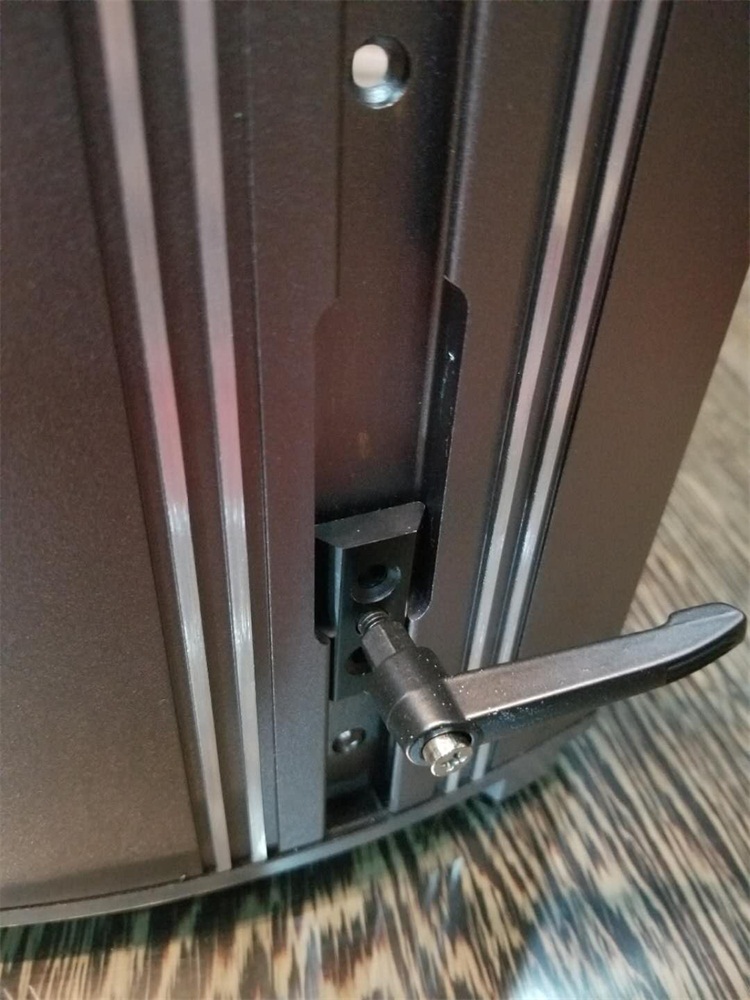

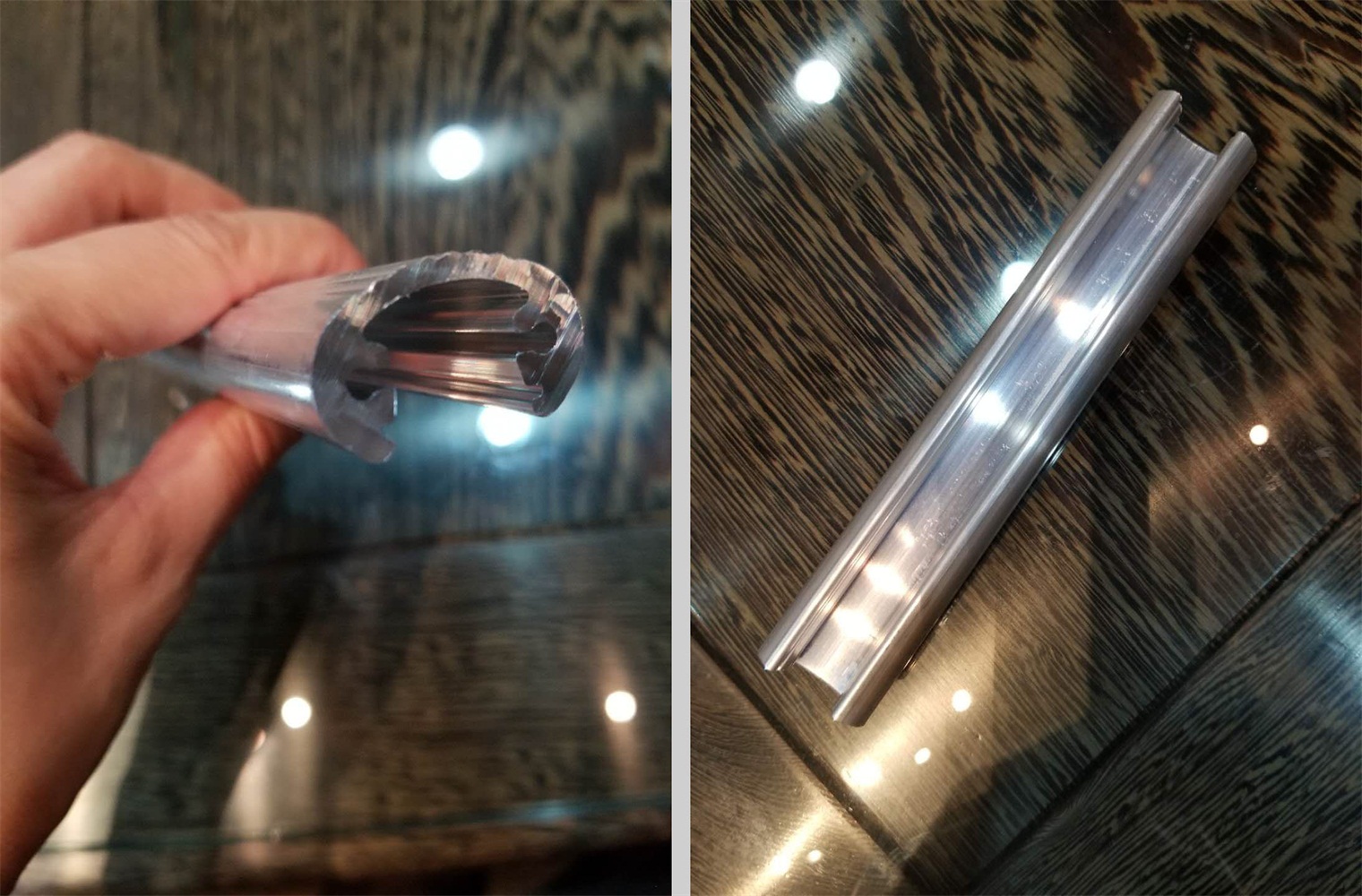

almighty long groove, equip with specialized aluminium alloy slide block. Slide block could support about 100kg, also could be adjust the angle and position.

Function

1. Strengthen cabinet’s rigidity.

2. As supporting point when hanging up or place everywhere.

3. Could be connect with multiple speaker to used.
