AR628 is a professional powerful two way speaker with two 15in φ100mm LF drivers and one φ75mm HF driver. Features of powerful, high sound pressure. Cabinet use flight case style for easy to use and move. Suitable for some mid or small touring performance.

SPECS

Rated Power: 1000W

Component: LF2x15" (φ100mm)/ HF1xφ75mm

Impedance: 4Ω

Dispersion: 90x60°

Sensitivity: 102dB

Max. SPL: 132dB

Freq. Response: 45-18.5kHz

Cabinet: 18mm fire-proof plywood

DIM(WxDxH):497x662.5x1236mm

MEAS(WxDxH): 497x662.5x1236mm

N.W: 94kg

G.W: 94kg

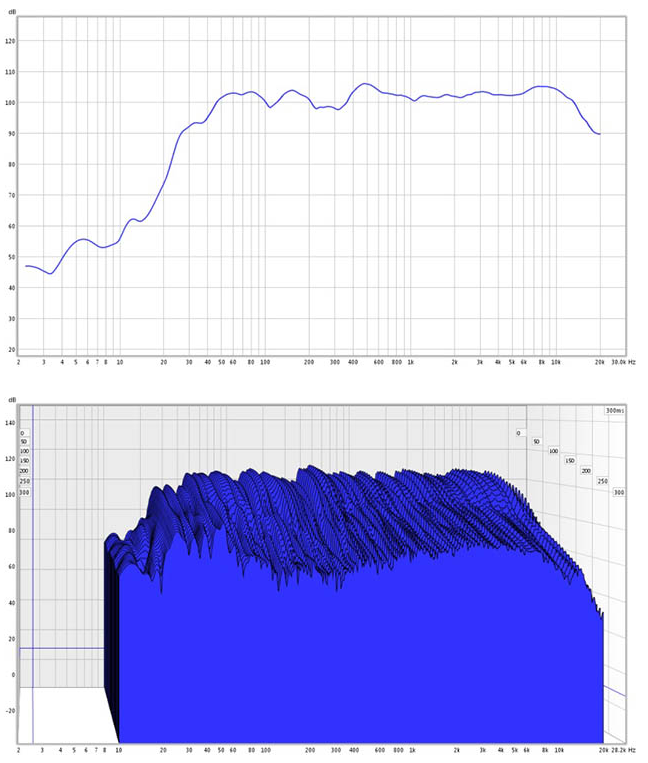

Freq.Response Curve
