  • AR618
Detail

AR618 is a professional powerful two way speaker with one 15in φ100mm LF drivers and one φ51mm HF driver. Features of powerful, high sound pressure. Cabinet use flight case style for easy to use and move. Suitable for some mid or small touring performance.




SPECS

Rated Power: 450W

Component: LF1x15" (φ100mm)/ HF1xφ51mm

Impedance: 8Ω

Dispersion: 90x60°

Sensitivity: 99dB

Max. SPL: 125dB

Freq. Response: 50-19kHz

Cabinet: 18mm fire-proof plywood

DIM(WxDxH):663.5x497x759.3mm

MEAS(WxDxH): 663.5x497x759.3mm

N.W: 61kg

G.W: 61kg

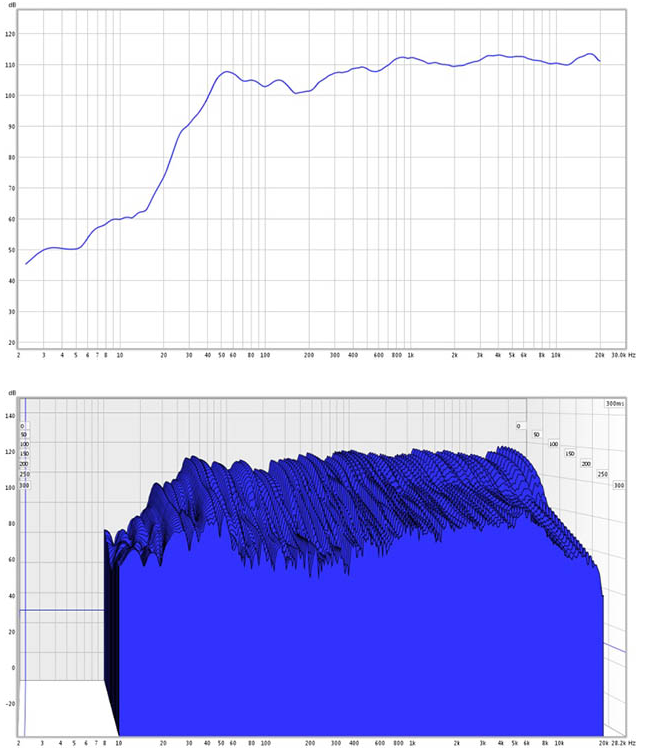

Freq. Response Curve
