AR-338 is a two way passive speaker with a φ75mm HF driver and two φ100mm 15in LF driver. Wide frequency response, powerful, suitable for some large occasion.

Application

Large scale performances, some simple outdoor performances, could be transfer 50-80m without subwoofer.

SPECS

Rated Power: 950W

Componet: LF2*15"(φ100mm)/ HFφ75mm

Impedance: 4Ω

Dispersion: 90x60°

Sensitivity: 102dB

Max. SPL： 132dB

Freq. Response: 45-18.5kHz

Cabinet: 18mm MDF

DIM(WxDxH): 486x561x1236mm

MEAS(WxDxH): 530x605x1290mm

N.W: 74kg

G.W: 90kg

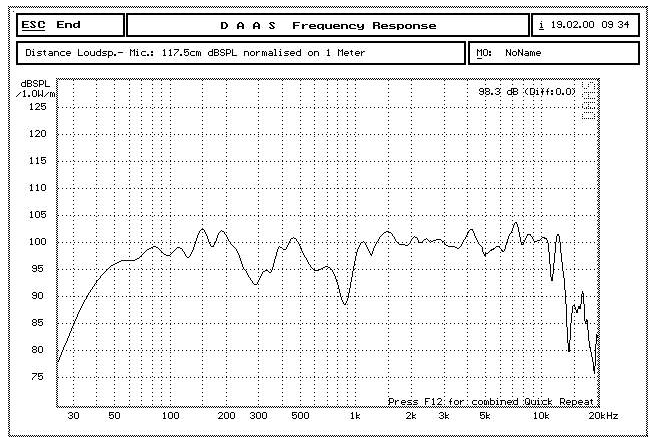

Freq. Response Curve
