F-15Q is a two way speaker use of φ75mm 180mm magnet titanium HF driver, equip with physical characteristics Curve control of the horn and one Physical characteristics Curve control of the horn and one φ100mm copper-clad aluminium voice coil, 220mm magnet LF driver. HF and LF are second-order crossover network. The best listening distance of 8-25 meters. As much as possible to avoid using in small scenes.

Application

100-300 people street performance, celebration, large venues, auditorium and so on. General use one or two pairs of speakers, could use without subwoofer in a low requirement, is an economical medium-range speakers.

SPECS.

Rated Power: 400W

Component: LF1*15"(φ100mm, 220 magnet)/ HFφ75mm Voice Coil, 180mm magnet)

Impedance: 8Ω

Dispersion: 70x50°

Sensitivity: 99dB

Max. SPL:124dB

Freq. Response: 60-19kHz

Cabinet: 18mm plywood

DIM(W*D*H): 490x550x756mm

MEAS(W*D*H): 670x600x815mm

N.W: 40kg

G.W: 46kg

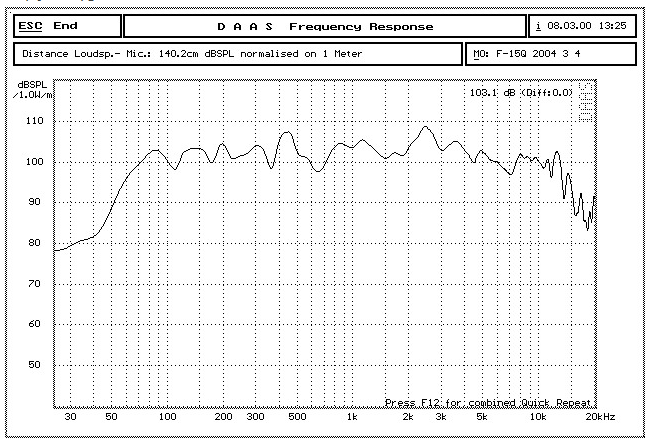

Freq.Response Curve
