ARCS is a two way speaker with one France original PHL 15in weatherproof LF driver, and one φ75mm Italy original B&C HF Driver. Equip with France original DOSC waveguide.WST-based line source design, perfect coupling, divinable coverage, very good for medium projection, modular 22.5 horizontal direction, asymmetric vertical pointing.Good to use in touring show and installation.Features of easy to set up a system.

Application

Touring show, Theatre, Club, Concert and so on.

SPECS

Rated Power: LF750W/ HF400W

Component: LF1x15"(PHL)/ HF1xφ75mm(B&C)

Impedance: 8Ω

Snesitivity: LF98dB/ HF109dB

Max. SPL: 130dB

Freq. Response: 63.-18kHz, (25-18kHz could be used)

Nominal Directivity(-6dB): Horizontal symmetry 22.5°, Vertical asymmetric 20°up 40°down.

Dispersion: 22.5x60°

DIM(WxDxH): 820x440x652mm

MEAS(WxDxH): 860x480x730mm

N.W: 57kg

G.W: 63kg

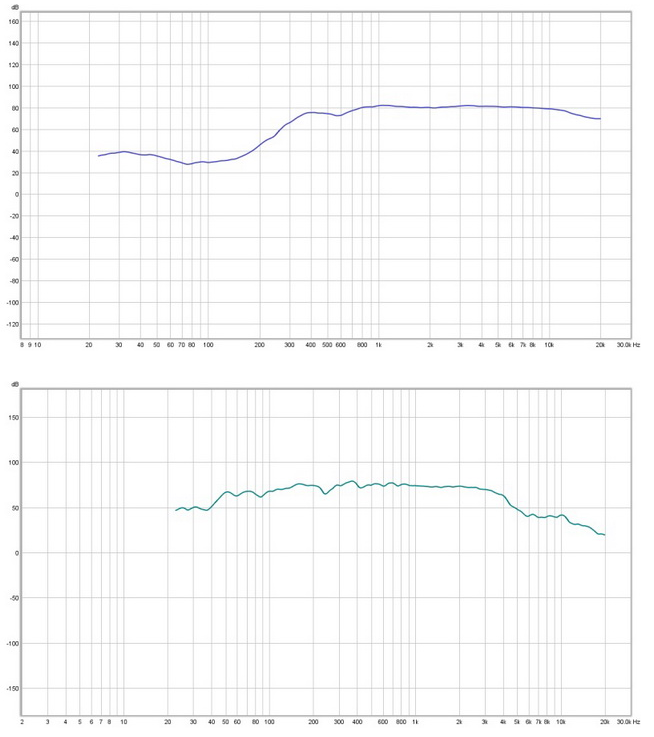

Freq. Response Curve
