S-8M is a professional two way coaxial monitor speaker consist of one φ50mm 8in LF driver and one 14mm paper cone HF driver. Distance for use is 2-8m. Have a features of wide band, high fidelity.

SPECS.

Rated Power: 120W

Component: LF1*8"(φ50mm Voice Coil)/HF1*14mm

Impedance: 8Ω

Dispersion: 120x90°

Sensitivity: 90dB

Max. SPL: 112dB

Freq. Response: 55-19kHz

Cabinet: 15mm Birch Plywood

DIM(W*D*H): 120x380x233mm

MEAS(W*D*H): 505x470x480mm

N.W: 11kg

G.W: 15kg

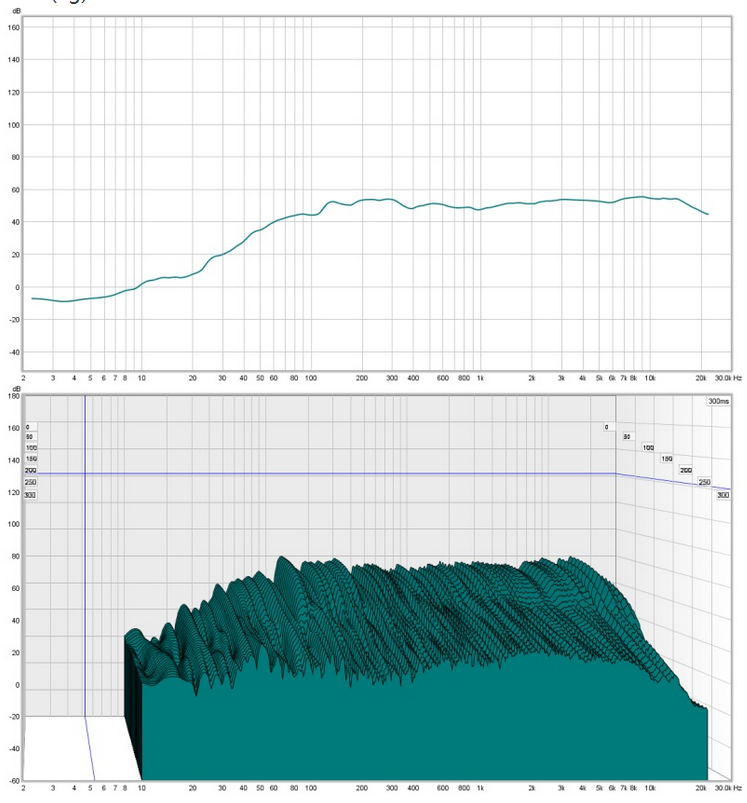

Freq. Response Curve
