XO-15ND is a 2-way 15 inch psaaive professional speaker for touring show, multi-fuction hall. With one φ100mm voice coil neodymium 15 inch LF driver and one φ75mm voice coil neodumium HF driver. HF driver with diecasted Al-alloy horn loaded. Cabinet use 15mm birch plywood. Pentagon shaped structure effectively reduce the resonance. Easy to install, wire connection use die casting aluminum material, reduce the resonant 30 degrees is inserted into the speaker line, to eliminate the bending force by the weight of the cut line, while avoiding the box wall damaged plug.

Application

Recording room, art performance, karaoke and so on.

SPECS

Rated Power: 400W

Component: LF1x15"(φ100mm,neo)/HF1xφ75mm(neo)

Impedance: 8Ω

Dispersion: 60x75°

Sengsitivity: 99dB

Max. SPL: 125dB

Freq. Response: 57Hz-22kHz

Cabinet: 15mm birch plywood

Dim(WxDxH): 446.9x443x737mm

Meas(WxDxH): 590x590x805mm

N.W: 43kg

G.W: 46.3kg

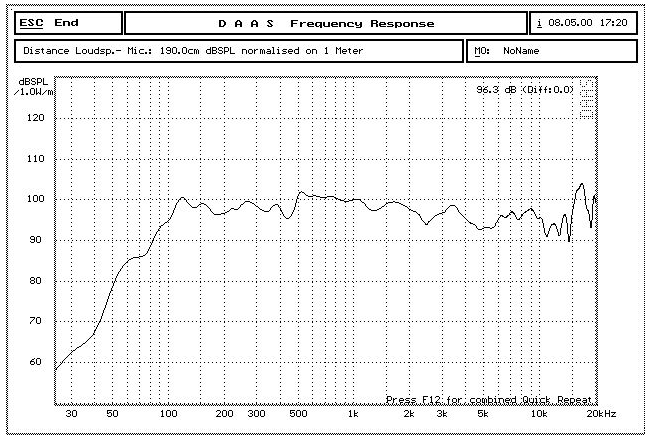

Freq. Response Curve
