Product Details
  • V-4BASS
Detail

V-4Bass is a waveguide speaker compose with 2 φ100mm 12in LF driver. Use with V-4.

Features

Small size, focus on strengthening V-4 speaker force points, covering the entire low-frequency intensity band. Best ratio  match with V-4 is 1: 2, small size, power, easy to hang in any space and more harsh environment.


Application

Disco


SPECS

Rated Power: 700W

Component: LF2x12"(φ100mm)

Impedance:4Ω

Sensitivity: 99dB

Max. SPL: 127dB

Freq. Response: 70-150Hz

Cabinet: 18mm Birch Plywood

DIM(WxDxH): 540x618x423mm

MEAS(WxDxH): 590x680x480mm

N.W: 48kg

G.W: 54kg

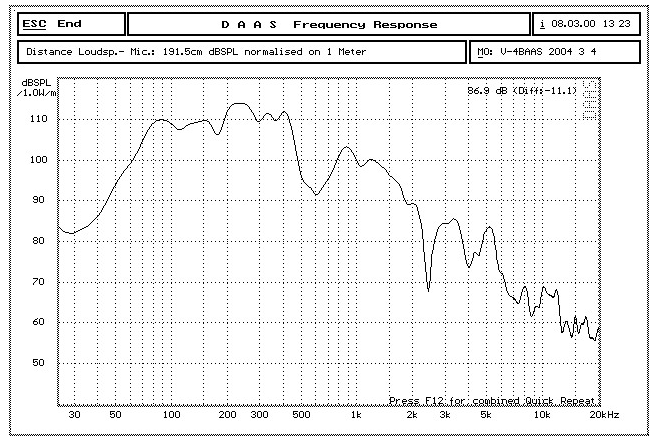

Freq. Response Curve
