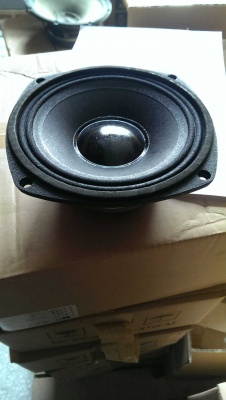

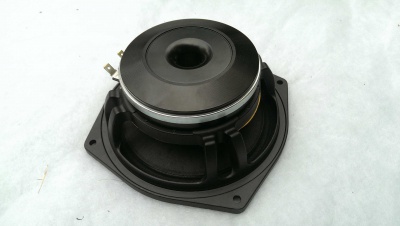

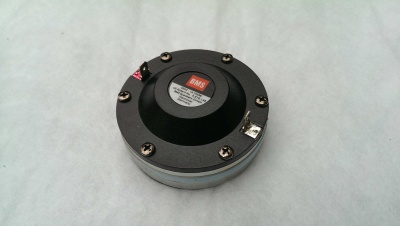

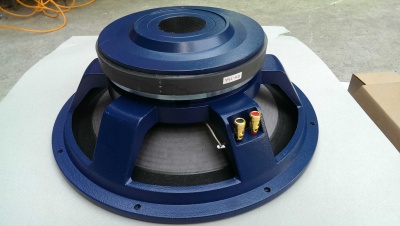

LA12X2 is a professional three way line array speaker with two φ100mm 12in 220mm ferrite magnet LF drivers, two φ51mm 6.5in 160mm ferrite magnet MF drivers and three φ44mm neo HF drivers.

Features

Compressed midrange phase control, belt-type high-frequency waveguide.

High sensitivity, high power, high sound pressure, low distortion and high transmission efficiency, well-proportioned projective cover, could cope with a variety of complex sound field environment.

Hanging system adopt high - strength aluminum alloy material. The installation is simple, convenient, safe, also shorten the system hanging time.

Application

Large outdoor touring show, gymnasium, auditorium, theater, concert hall...

SPECS

Rated Power: 1200W (RMS) 2400W (PEAK)

Component: LF2x12"(φ100mm)/ MF2x6.5"(φ51mm)/ HF3x1.75" (φ44mm, neo)

Impedance: 4Ω

Dispersion: 110x12°

Sensitivity(1m/1w): 102dB

Max. SPL: 135dB (RMS) 141dB (PEAK)

Freq. Range: 46Hz～20KHz (±3dB)

Cabinet: 18mm brich plywood

DIM( WxDxH): 1264x413x900mm

N.W: 66kg

Recomend powerful amplifier configuration

LF1300Wx2  8Ω

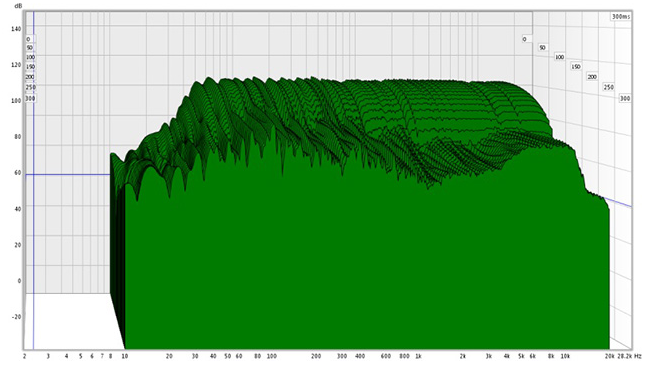

Freq. Response Curve
